12" Gas Griddle SML-G12

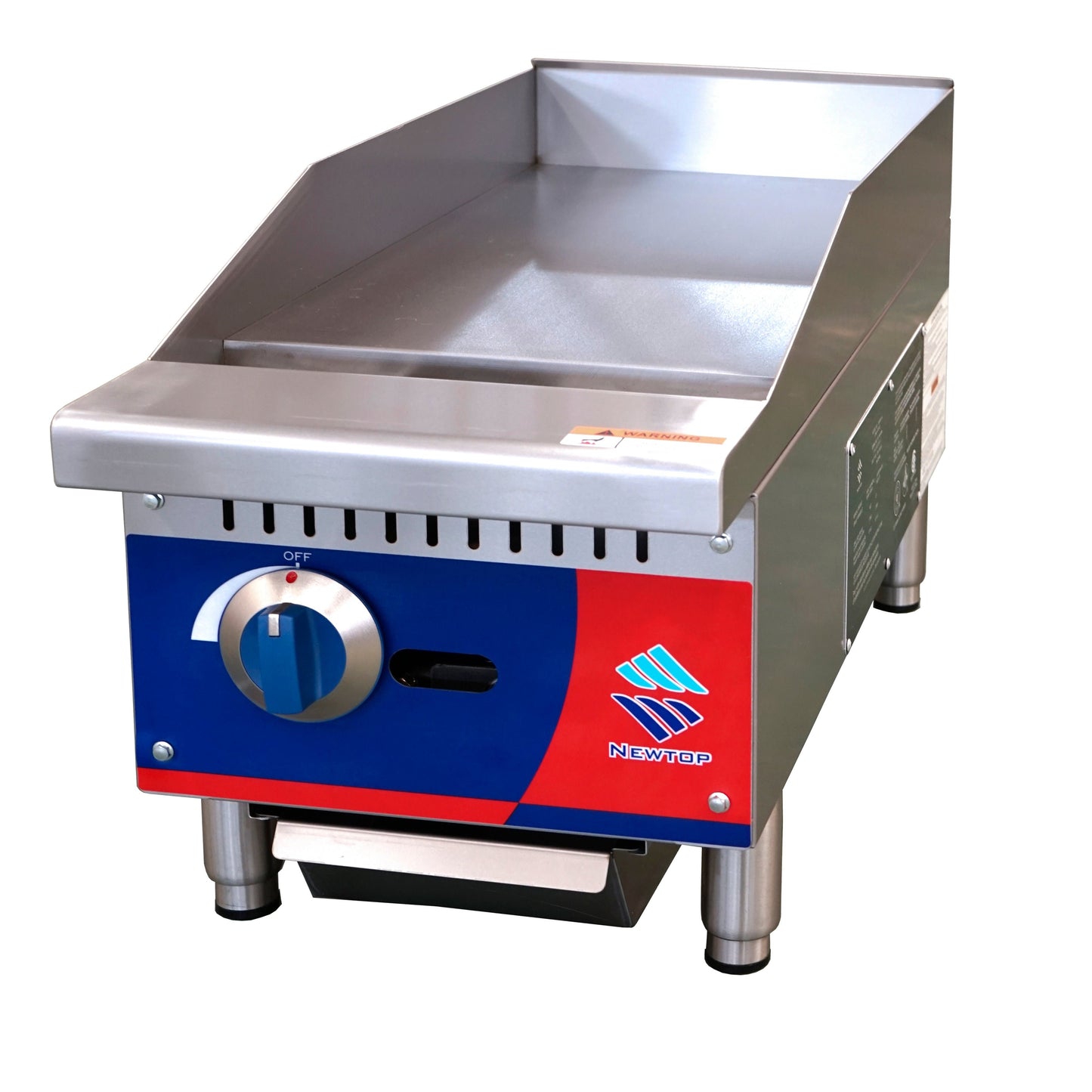

Newtop 12" Gas Griddle SML-G12

Available in 12", 24“, 36”,48“ & 60” widths, the 30,000 BTU output per burner provides even heat to the 3/4“ thick polished steel griddle plate. Adjustable manual gas controls provide easy and safe operations. Pilot light can be lit from the front for ease of use.

Standard Features

•  “U” shape burners provide even heat distribution every 12”
• 3/4“ griddle plate
• 30,000 BTU / burner
• Gas control knob every 12”
• All stainless steel cabinet
• Double wall insulated sides
• “Cool-to-the-touch” front s/s edge
• Back and side splash guards fully welded to griddle plate
• Flue located on back of unit for ample ventilation
• Adjustable stainless steel legs, non-skid feet
• Each Griddle shipped standard Natural gas, LP conversion kit included
• Easy to remove 3-1/4” grease drawer with
• Grease trough is standard 4” spatula width
• Griddle is fully serviceable from the front

Product Specification

• Controls: Manual
• Number of Burners: 1
• BTUs: 30,000
• Cooking Area: 20.5”D x 12”W
• Overall Dimensions: 12’’L x 32.3’’W x 15.7’’H (30.5 cm x 82 cm x 40 cm)
• Weight: 99 lbs (45 kg)
• Shipping Dimensions: 16.3’’ L x 36’’ W x 19.3’’H (41.5 cm x 91.5 cm x 49 cm)
• Shipping Weight: 125 lbs (56.7 kg)
