36" Gas Range SML-R36

36" Gas Range SML-R36

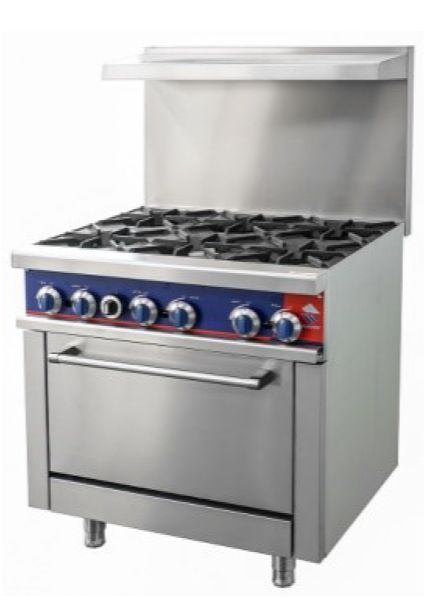

Newtop 36" Gas Range, (6) 30,000 BTU open burners with Oven SML-R36

Standard Features

  • 30,000 BTU per top burner  (NG)
  • 12” x 12” cast iron grates with aeration bowl
  • Standing pilot light for individual burners
  • 33,000 BTU static oven  (NG)
  • Oven interior side guides & bottom porcelain coated
  • Oven thermostat adjusts from 200°F - 500°F
  • Manual gas controls
  • Oven with 2-racks, 3 positions
  • Stainless steel front, back riser, and lift off shelf
  • Stainless steel legs standard
  • “Cool-to-the-touch” front s/s deck
  • Flue located on back of unit for ample ventilation
  • Ranges shipped standard Natural gas, LP conversion kit included
  • Easy to remove full width crumb tray
  • Range is fully serviceable from the front
  • Optional casters available. All swivel with front locking brakes

Specifications

  • (6) 30,000 BTU open burners with Oven
  • Total BTU: 213,000
  • Dimensions: 36.0" W x 32.4" D x 59.6" H
  • Shipping dimensions: 39.5" W x 36.5" D x 43.8" H
  • Shipping weight: 468lbs
  • 3/4” NPT gas connection
  • NG gas 5” W.C. ; LP gas 10”W.C.
  • Legs adjustable from 6”-7 1/2” total leg height
