Hobart

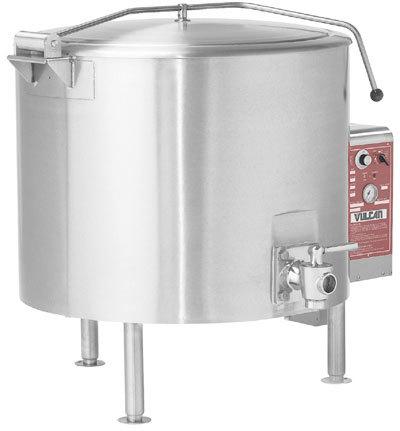

EL & ET Series Electric Fully Jacketed Kettle
EL & ET Series Electric Fully Jacketed Kettle
EL & ET Series Electric Fully Jacketed Kettle
Standard Features
■ Kettle fully steam jacketed.
■ Mounted on stainless steel 2" diameter legs with adjustable flange feet.
■ Reinforced hinged stainless steel cover with condensate ring and drop down lift handle.
■ Kettle interior bottom sloped to front for smooth product flow through a mounted, tapered, plug type food product draw-off valve of standard 2" diameter.
■ Draw-off opening strainer.
■ Graduated measuring rod.
■ Faucet bracket.
■ On/off switch with signal light and thermostat control. 15 PSI relief valve, magnetic conductor and electric heating elements, low water cut-off control and a pressure limit switch with pressure gauge.
■ Available standard 208 volt, 3 phase, 50/60 Hz or 240 volt, 3 phase, 50/60 Hz.
Options
*Three inch compression tangent draw-off valve with perforated strainer.
*Security facility package.
- Security type fasteners with tack welds.
- Stainless steel step over draw-off valve with chain.
*316 stainless steel jacket liner.
*Increase to 43.2 kW for 60 gallon models (3 phase only).
*480 volt, 3 phase, 50/60 Hz.
| Model | Gallons | Liters |
| EL80 | 80 | 303 |
| ET100 | 100 | 379 |
| ET125 | 125 | 473 |
| ET150 | 150 | 568 |
