Hobart

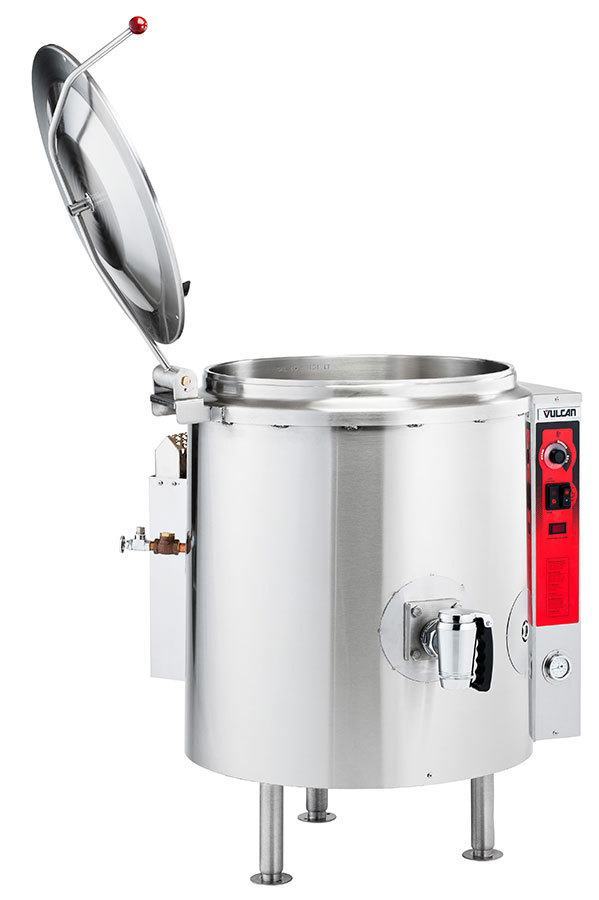

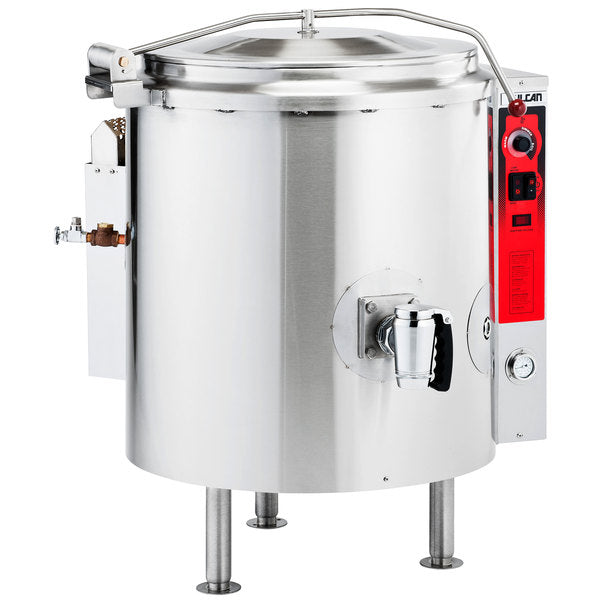

KGL Series Gas Floor Mounted Stationary Jacketed Kettle

KGL Series Gas Floor Mounted Stationary Jacketed Kettle

KGL Series Gas Floor Mounted Stationary Jacketed Kettle

Standard Features

■ Gas self-contained, stainless steel, 2⁄3 jacketed floor mounted stationary steam kettle.

■ Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.

■ Heavy bar rim (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater).

■ Embossed gallon/liter markings.

■ Faucet bracket. ■ 50 psi (3.4 kg/cm2) steam jacket rating.

■ Spring assist hinged stainless steel cover with condensate ring and drop down lift handle.

■ Two inch compression tangent draw-off valve with perforated strainer.

■ Tubular stainless steel legs with flanged feet.

■ Stainless steel enclosure for “water resistant” controls.

■ Controls include a power switch, power “on” light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and low water shut-off.

■ Elevation from sea level to 8,999 feet standard, for higher elevation consult factory.

Options

*Two inch bolt on plug draw-off valve with perforated strainer.

*Three inch bolt on compression tangent draw-off valve with perforated strainer increases height of kettle.

*Correction facility package:

  1. Security type fasteners with tack welds.
  2. Stainless steel cover over draw-off valve with chain.

*Stainless steel protector for the draw-off valve with chain.

*Reinforced pivot assembly for spring assist cover.

*Heavy duty 14 gauge welded cover twin bar welded handles, NOT spring assist.

K20GL 100,000 BTU/hr. 20 gallon true working capacity
K40GL 100,000 BTU/hr. 40 gallon true working capacity
K60GL 100,000 BTU/hr. 60 gallon true working capacity
