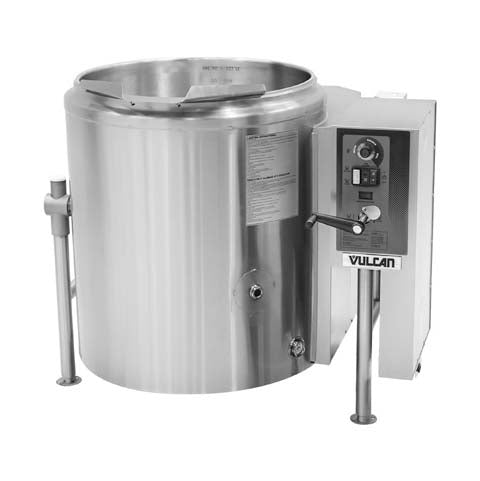

KGLT Series Gas Floor Mounted Jacketed Tilting Kettle
KGLT Series Gas Floor Mounted Jacketed Tilting Kettle
KGLT Series Gas Floor Mounted Jacketed Tilting Kettle
Standard Features
■ Gas self-contained, stainless steel, 2⁄3 jacketed floor mounted tilting steam kettle.
■ Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.
■ Heavy bar rim (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater).
■ Embossed gallon/liter markings.
■ 50 psi (3.4 kg/cm2) steam jacket rating.
■ Stainless steel enclosure for “water resistant” controls, self-locking tilt mechanism and faucet bracket.
■ Controls include a power switch, power “on” light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light and lower water shut-off.
■ Elevation from sea level to 8,999 feet standard.
■ Kettle tilts forward 95° to completely empty.
■ Tubular stainless steel legs with flanged feet.
Options
*Two inch bolt on compression tangent draw-off valve with perforated strainer.
*Two inch bolt on plug tangent draw-off valve with perforated strainer.
*Three inch bolt on compression tangent draw-off valve with perforated strainer increases height of kettle.
*Security facility package:
- Security type fasteners with tack welds.
- Controls protected with lockable cover.
*Stainless steel protector for the draw-off valve with chain.
| K20GLT | 100,000 BTU/hr. | 20 gallon true working capacity |
| K40GLT | 100,000 BTU/hr. | 40 gallon true working capacity |
| K60GLT | 100,000 BTU/hr. | 60 gallon true working capacity |
