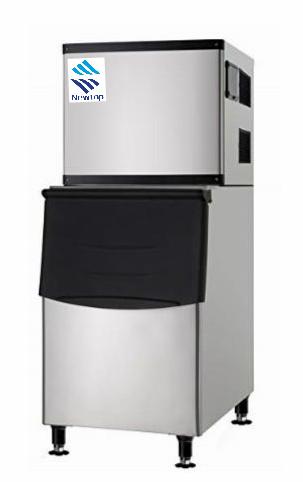

Modular Type Cube Ice Machine SM-IM-500



Modular Type Cube Ice Machine SM-IM-500

Overview

  • Ice Shape: Block
  • Block Ice Size: 22*22*22mm, 28*28*22mm, 32*32*22mm
  • Type: Modular
  • Capacity: 227kg/24 hours
  • Voltage: 115v
  • Weight: 120kg
Specifications

SM-IM-500

Dimension(L*W*H)mm

760*830*1718

Dimension(L*W*H)inch

30*32.7*67.6

Output(lb/24hr)

500lb=227kg

Bin Capacity (lb)

275lb=125kg

Voltage (V/Hz)

115/60

Power

115V/60/1ø, 1240w

Condenser

Air Cool

Refrigerant

R404A

Net Weight of Main Machine(kg)

66

Net Weight of Ice Bin(kg)

45

Gross Weight of Main Machine(kg)

70

Gross Weight of Ice Bin(kg)

50

PDF File

Installation and Maintenance Instructions
