24" Gas Range SML-R24

24" Gas Range SML-R24

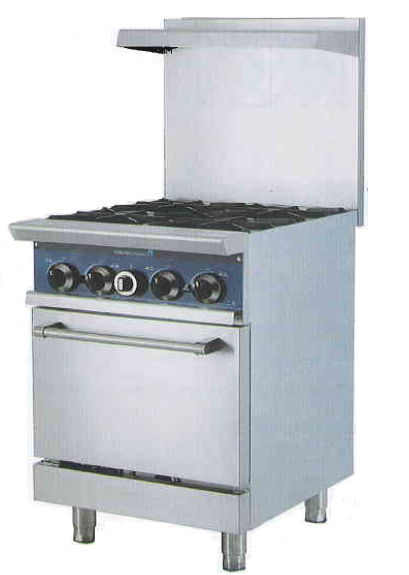

Newtop 24" Gas Range - 4 Burner with Oven SML-R24

Sturdy construction for demanding commercial cooking applications. User friendly operation with simple controls and easy to clean.

Standard Features

  • 30,000 BTU per top burner
  • 12” x 12” cast iron grates with aeration bowl
  • Standing pilot light for individual burners
  • 33,000 BTU static oven
  • Oven interior side guides & bottom porcelain coated
  • Oven thermostat adjusts from 200°F - 500°F
  • Manual gas controls
  • Oven with 2-racks, 3 positions
  • Stainless steel front, back riser, and lift o­ shelf
  • Stainless steel legs standard
  • “Cool-to-the-touch” front s/s deck
  • Flue located on back of unit for ample ventilation
  • Ranges shipped standard Natural gas, LP conversion kit included
  • Easy to remove full width crumb tray
  • Range is fully serviceable from the front

Product Specification

  • Total BTU: 153,000 NG, 136,000 LP
  • Power kW: 45 NG, 40 LP
  • Power of Oven kW: 9.7
  • Overall Dimensions: 23.9” L x 31.4” W x 60.2” H (60.9 cm x 79.7 cm x 153.0 cm)
  • Weight: 255 lbs (126 kg)
  • Shipping Dimensions: 28.0” L x 37.0” W x 44.1” H (71 cm x 94 cm x 112 cm)
  • Shipping Weight: 366 lbs (166 kg)
